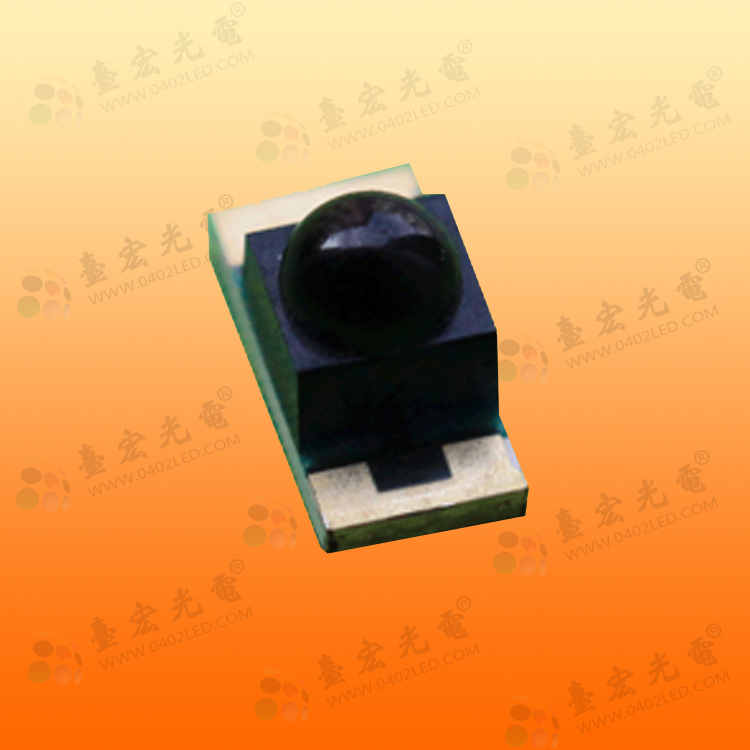

贴片红外接收头正贴反贴都可以，本接收头可以匹配市场上所有的红外发射管，或者我司直插发射管 贴片发射管，大功率发射管！

otes: 1.All dimensions are in millimeters

2.Tolerances unless dimensions ±0.1mm

 Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Units

Collector-Emitter Voltage VCEO 30 V

Emitter-Collector-Voltage VECO 5 V

Collector Current IC 20 mA

Operating Temperature Topr -25 ~ +85 ℃

Storage Temperature Tstg -40 ~ +85 ℃

Soldering Temperature *1 Tsol 260 ℃

Power Dissipation at(or below)

25℃Free Air Temperature

Pc 75 mW

Notes: *1:Soldering time≦5 seconds.

Precautions For Use

1. Over-current-proof

Customer must apply resistors for protection , otherwise slight voltage shift will cause big

current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the

storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition
